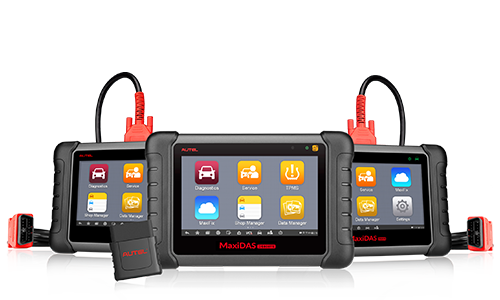

MaxiDAS DS808BT

Featuring the powerful Cortex-A9 processor, and a 7.0 inch LCD capacitive touch screen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiDAS DS808BT is your ideal auto diagnostic and service tool. DS808BT provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

Category:

Description

  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
  • Smart AutoVIN technology for identifying vehicles easily
  • Automatic system and software updates with real-time push message notifications via Internet
  • Instant remote control tech support anytime, anywhere
  • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
  • Convenient data management system for managing internal program applications and reviewing data

Specifications

Recommended Use Indoor
Operating System AndroidTM 4.4.4, KitKat
Processor Cortex-A9 quad-core processor (1.4 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity • Mini USB 2.0 • USB 2.0 • Wi-Fi • HDMI Type A
• Micro SD card slot (supports up to 32GB)
Sensors Light sensor for brightness auto adjustment
Audio Input/Output • Input: N/A
• vOutput: Beep
Power and Battery • 3.7 V/5000 mAh lithium-polymer battery
• Charges via 5 VDC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50°C
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% – 95% non-condensing
Dimensions (W x H x D) 270.8 mm x 176.0 mm x 36.0 mm
Net Weight 885 g
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

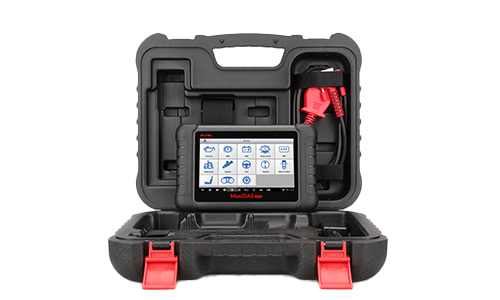

Accessories

  • MaxiVCI Mini
  • USB Cable (for test)
  • USB Cable (for charging)
  • USB External Power Adapter
  • Quick Reference Guide
  • User Manual
  • Carry Case

Downloads

MaxiDAS DS808BT User Manual.pdf
