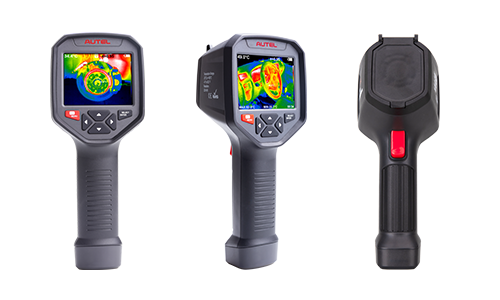

MaxiIRT IR100

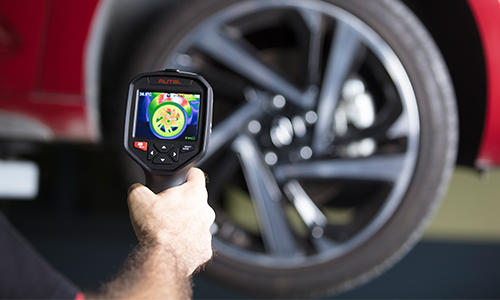

This infrared thermal camera integrates surface temperature measurement and real-time thermal image. The traditional one needs to measure every component one by one, while it is not necessary for infrared thermal camera, thus saving time. The potential problems may be shown on color display screen clearly. Moreover, the central point measurement cursor is used to quickly and accurately locate and measure the temperature of the target object.

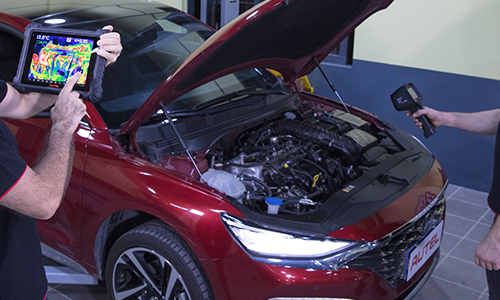

In order to increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report for print.

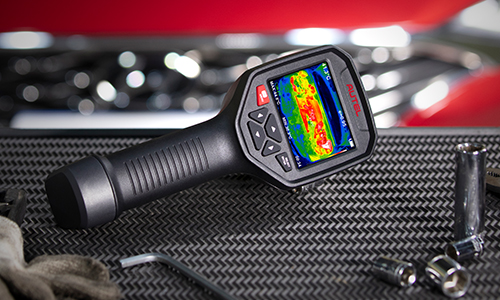

Compact yet rugged, the product is easy to operate and has strong function. It is the ideal selection for electric power, electronic manufacturing, industrial inspection and other fields.

Category:

Description

  • Accurate Thermal Sensitivity 0.07°C
  • 3.5” Color Display 320×240
  • Measures Wide Temperature Range -20°C to 450°C
  • 8G Memory : Stores up to 50,000 photo
  • 5-Color Palette, Iron Red, Cool, White, Black, Rainbow (Spectra)
  • Adjustable Emissivity Settings Support from 0.01 to 1.00
  • Non-Contact Targeting Touchless temperature readings
  • Auto-Focus: Instant thermal imaging for clear images
  • Wireless: Transfer images to view on larger screen devices via Wi-Fi
  • Rechargeable: 5,000 mAh battery provides up to 4 hours of continuous use
  • 8G Memory: Store up to 50,000 images

Specifications

Display screen 3.5 inch full view TFT display
Infrared image resolution 320×240
Visible image resolution 300,000 pixel
LCD resolution 640×480
Field angle 56°×42°
Thermal sensitivity 0.07°C
Frame rate of thermal images 9Hz
Focus mode Fixed
Wave length coverage 8-14um
Emissivity Adjustable from 0.01 to 1.00
Color palette rainbow, iron oxide red, cold color, white hot, black hot
Temperature measurement range -20 °C to 450 °C
Storage capacity Built in 8G
File format JPEG
USB Micro USB 2.0
Power supply Built in chargeable 26650 battery Detachable
Working time 3-4 hours
Language English, Chinese , German, Italian
Automatic power
off time		 Selectable: 5 minutes, 20 minutes, not power off automatically
Product size 256mm×97.2mm×128.9mm
Product weight 588g
Working temperature 0
°C to 45 °C
Storage temperature -20 °C to 60 °C

Accessories

  • HDMI Cable
  • Imager Heads and Cable (8.5 mm)
  • Protective carrying case
  • Magnet and Hook
  • User Manual
  • Mini USB Cable

Comparison

MV105/108 MV208 MV400 MV460 MV480 MV500
High resolution and full color digital LCD display 2.4-Inch (320X240px) 2.4-Inch (320X240px) 3.5-Inch (640X480px) 3.5-Inch (640X480px) 4.1-Inch (1200X720px) 5-Inch (1280×720)
Record and Playback Images & Video Clips 320X240px 640×480px 1920 x 1080px 1920 x 1080px 1280×720px
Audio Annotation with MIC & Speaker
for detailed review		 √
Bright LED Flashlight √
Direction of View 0° (Front only) 0°+90° (Front & Side)
Freeze-Frame Camera Stills or Video Recording √ √
Wider 70° Field of View √ √
More than 10,000 LUX bright 10-Level adjustable LED √ √
Magnet & Hook Included √ + Mirror √
Compatible with 5.5MM (0.22”) Single Camera Head √ √
Single button for quick photo and video recording √ √
On-screen Horizontal / Vertical Reverse √ √ √ √
Dual cameras see straight ahead or at a 90° angle √ √
Add audio annotation for detail presentation √ √
Touchscreen for convenient operation √
On-screen photo editing and markup √
Wireless monitor enables remote viewing √
On-screen 90° clockwise rotation √ √ √
HDMI port for monitor view √ √ √
Built-in & adjustable LED illuminates viewing area √ √ √ √
BOn-screen horizontal/vertical reverse √ √ √ √
View objects as close as 1″ √ √ √ √ √
Mini USB connector for uploading images and videos √ √ √ √ √
1 m long semi-rigid flexible watertight shaft √ √ √ √ √
Digital zoom for detailed viewing 5× 5× 7× 7× 5×
Narrow probe diameter available in both 5.5 mm and 8.5 mm √ √ 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm
Micro SD card slot for greater memory capacity √ √ √ √ √
Oil and scratch resistant tempered glass lens √ √ √ √ √
Ergonomic and durable tool housing √ √ √ √ √
Built-in rechargeable Li-ion battery √ √ √ v
Multilingual support √ √ √ √
Water Resistant Camera head √ √ √ √
