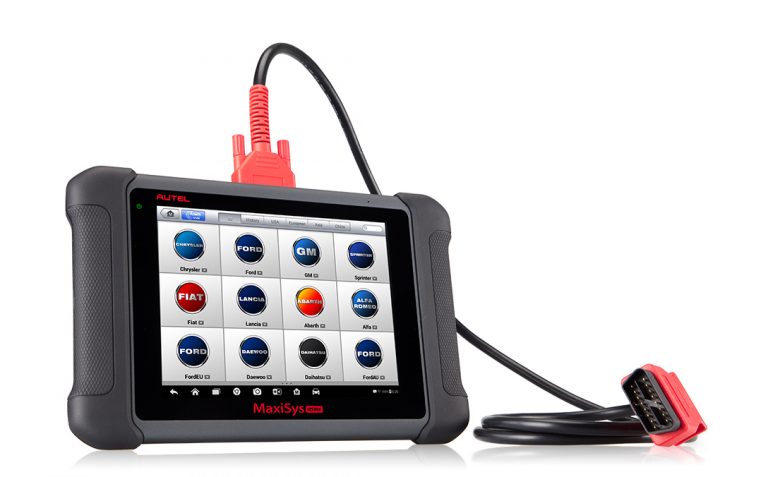

MaxiSys MS906

MaxiSys MS906 is based on the Android operating system and is featured with an extensive coverage of OE-level diagnostics at an affordable price. Built with Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), a 32G SSD hard drive and an 8” capacitive HD touch screen, MaxiSys MS906 efficiently provides comprehensive vehicle diagnostics and analysis.

Category:

Description

  • Extraordinarily powerful Samsung Exynos Hexa-core processor
  • 8.0” 1024×768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
  • Internal reliable 32GB SSD for better performance
  • Built-in 8-megapixel rear camera with autofocus and flashlight
  • 802.11b/g/n Wi-Fi to access your favorite web resources
  • Unique ergonomic design with rubberized outer protection and a rugged internal housing
  • Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
  • Smart AutoVIN technology for identifying vehicles easily
  • Automatic system and software updates with real-time push message notifications via Wi-Fi
  • Instant remote control tech support anytime, anywhere
  • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Convenient data management system for managing internal program applications and reviewing data

Specifications

Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0″ LED capacitive touch screen with 1024x768P resolution
Connectivity Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker
Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage DC/12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
Weight NW: 0.93 kg (2.05 lb.)

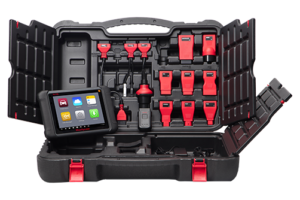

Accessories

  • Bluetooth Diagnostic Interface
  • AC/DC Adapter (12V)
  • Adapter for Benz-14 (Europe Only)
  • Adapter for Chrysler-16 (America Only)
  • User Manual
  • Carrying Case
  • Quick Reference Guide
  • Lighter Fuse
  • Main cable
  • Adapter for GM/Daewoo-12
  • Adapter for Audi-2+2
  • Adapter for BMW-20
  • Adapter for Benz-38
  • Adapter for Kia-20
  • Adapter for Mitsubishi/Hyundai-12+16
  • Adapter for Nissan-14
  • Adapter for Honda-3
  • USB Cable
  • Cigarette Lighter
  • Soft Cloth
  • Packing List
  • Mini USB Cable

Comparison

MaxiSys
Elite		 MaxiSys
MS906		 MaxiSys
MS906BT		 MaxiSys
MS906TS		 MaxiSys
MS908CV		 MaxiSys
MS908S		 MaxiSys
MS908S Pro
Function
All Systems DTC Scan √ √ √ √ √ √ √
Service Function √ √ √ √ √ √ √
Bi-Directional Control √ √ √ √ √ √ √
Auto VIN Technology √ √ √ √ √ √ √
ECU Coding √ — √ √ — √ √
ECU Programming √ — — — — — √
MaxiFix Cloud-Based Info System √ √ √ √ √ √ √
Data Manager √ √ √ √ √ √ √
Shop Manager √ √ √ √ √ √ √
Remote Support √ √ √ √ √ √ √
Pre-scan Report
& Post-scan Report		 US Only US Only US Only √ — US Only US Only
Print Feature √ √ √ √ √ √ √
Multi-language Support √ √ √ √ √ √ √
Coverage
American/Asian/European Coverage (1996-Present) √ √ √ √ √ √ √
Hardware
Display Size 9.7″ 8″ 8″ 8″ 9.7″ 9.7″ 9.7″
Wireless VCI MaxiFlash Elite — MaxiVCI V100 MaxiVCI V100 MaxiFlash Elite Wireless Diagnostic Interface MaxiFlash Elite
Battery Life 15400 mAh
3.7 V		 5000 mAh
3.7 V		 10000 mAh
3.7 V		 10000 mAh
3.7 V		 11000 mAh
3.7 V		 11000 mAh
3.7 V		 11000 mAh
3.7 V
Memory Storage 64GB 32GB 32GB 32GB 64GB 64GB 64GB
Connector Kit √ √ √ √ √ √ √
Options
TPMS — — — √ — — —
Oscilloscope √ — √ √ √ √ √
Inspection Camera √ — √ √ √ √ √
ADAS √ √ √ — — √ √

video

Downloads

MaxiSys MS906 User Manual V2.0
