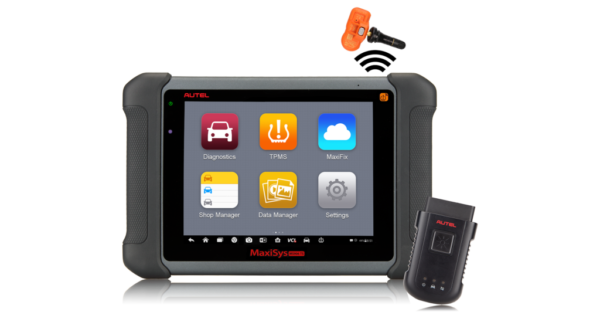

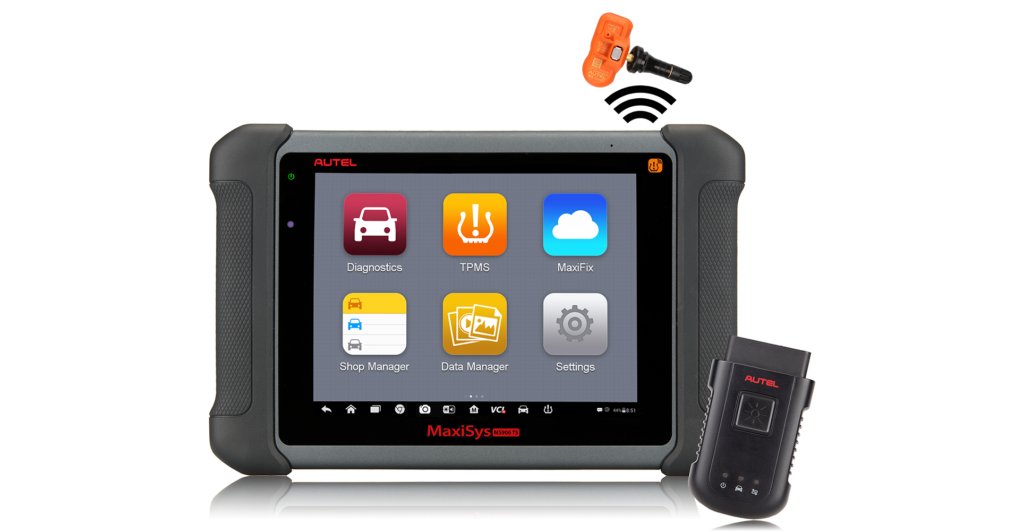

MaxiSys MS906TS

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

Category:

Description

  • Extraordinarily powerful Samsung Exynos Hexa-core processor
  • 8.0” 1024×768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
  • Internal reliable 32GB SSD for better performance
  • Built-in 8-megapixel rear camera with autofocus and flashlight
  • Integrated TPMS antenna module for performing comprehensive TPMS service
  • 802.11b/g/n Wi-Fi to access your favorite web resources
  • Unique ergonomic design with rubberized outer protection and a rugged internal housing
  • Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
  • USB, audio and auxiliary ports make it easy to connect accessories
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • The most extensive complete system coverage for more than 80 US, Asian and European makes and models
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
  • Smart AutoVIN technology for identifying vehicle easily
  • Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
  • Automatic system and software updates with real-time push message notifications via internet
  • Instant remote control tech support anytime, anywhere
  • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
  • Convenient data management system for managing internal program applications and reviewing data

Specifications

Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0″ LED capacitive touch screen with 1024x768P resolution
Connectivity Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.10 kg (2.42 lb.)

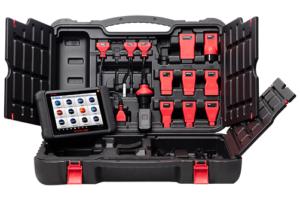

Accessories

  • AC/DC Adapter (12V)
  • Adapter for Chrysler-16 (America Only)
  • Carrying Case
  • Quick Reference Guide
  • Adapter for GM/Daewoo-12
  • Adapter for Benz-38
  • Adapter for Mitsubishi/Hyundai-12+16
  • Adapter for Honda-3
  • Adapter for VW/AUDI-2+2
  • Packing List
  • Adapter for Benz-14 (Europe Only)
  • User Manual
  • MaxiVCI V100
  • Lighter Fuse
  • Adapter for BMW-20
  • Adapter for Kia-20
  • Adapter for Nissan-14
  • Cigarette Lighter
  • Soft Cloth
  • Mini USB Cable



Comparison

MaxiSys
Elite		 MaxiSys
MS906		 MaxiSys
MS906BT		 MaxiSys
MS906TS		 MaxiSys
MS908CV		 MaxiSys
MS908S		 MaxiSys
MS908S Pro
Function
All Systems DTC Scan √ √ √ √ √ √ √
Service Function √ √ √ √ √ √ √
Bi-Directional Control √ √ √ √ √ √ √
Auto VIN Technology √ √ √ √ √ √ √
ECU Coding √ — √ √ — √ √
ECU Programming √ — — — — — √
MaxiFix Cloud-Based Info System √ √ √ √ √ √ √
Data Manager √ √ √ √ √ √ √
Shop Manager √ √ √ √ √ √ √
Remote Support √ √ √ √ √ √ √
Pre-scan Report
& Post-scan Report		 US Only US Only US Only √ — US Only US Only
Print Feature √ √ √ √ √ √ √
Multi-language Support √ √ √ √ √ √ √
Coverage
American/Asian/European Coverage (1996-Present) √ √ √ √ √ √ √
Hardware
Display Size 9.7″ 8″ 8″ 8″ 9.7″ 9.7″ 9.7″
Wireless VCI MaxiFlash Elite — MaxiVCI V100 MaxiVCI V100 MaxiFlash Elite Wireless Diagnostic Interface MaxiFlash Elite
Battery Life 15400 mAh
3.7 V		 5000 mAh
3.7 V		 10000 mAh
3.7 V		 10000 mAh
3.7 V		 11000 mAh
3.7 V		 11000 mAh
3.7 V		 11000 mAh
3.7 V
Memory Storage 64GB 32GB 32GB 32GB 64GB 64GB 64GB
Connector Kit √ √ √ √ √ √ √
Options
TPMS — — — √ — — —
Oscilloscope √ — √ √ √ √ √
Inspection Camera √ — √ √ √ √ √
ADAS √ √ √ — — √ √

video

Downloads

MaxiSys MS906 TS Usermanual – V1.00.pdf
