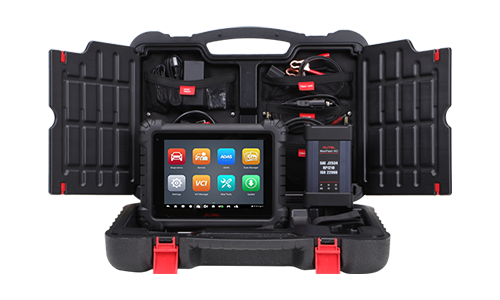

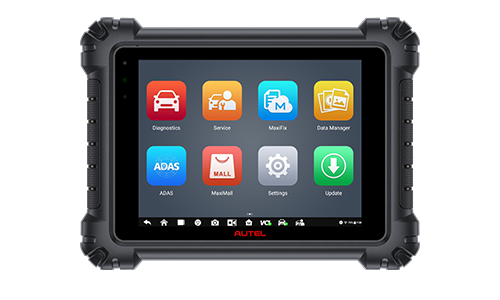

MaxiSys MS909

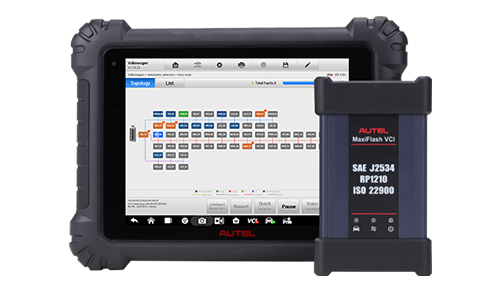

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Category:

Description

  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including super car
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications

Operating System Android 7.0
Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jac
Power and Battery 15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

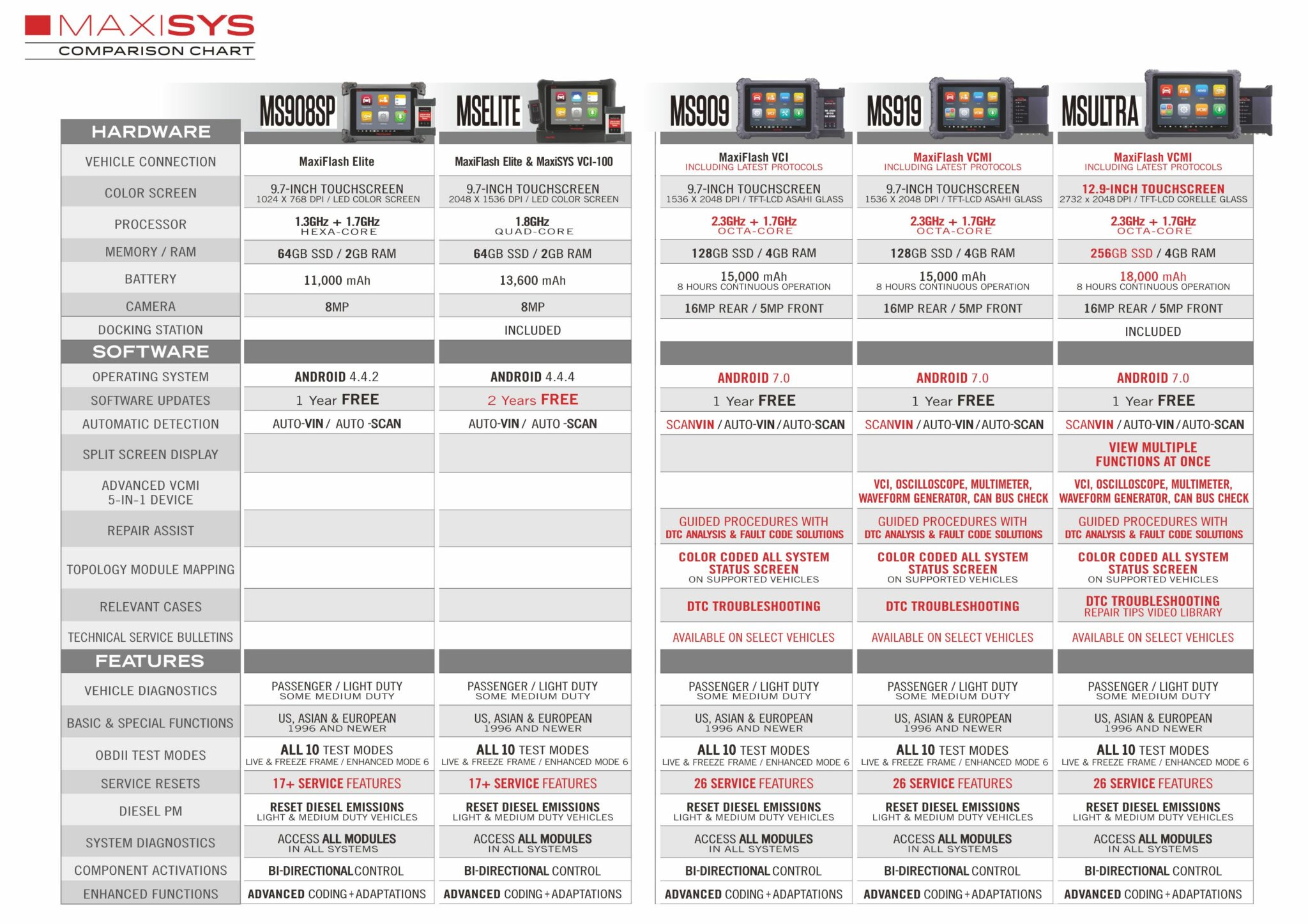

Comparison

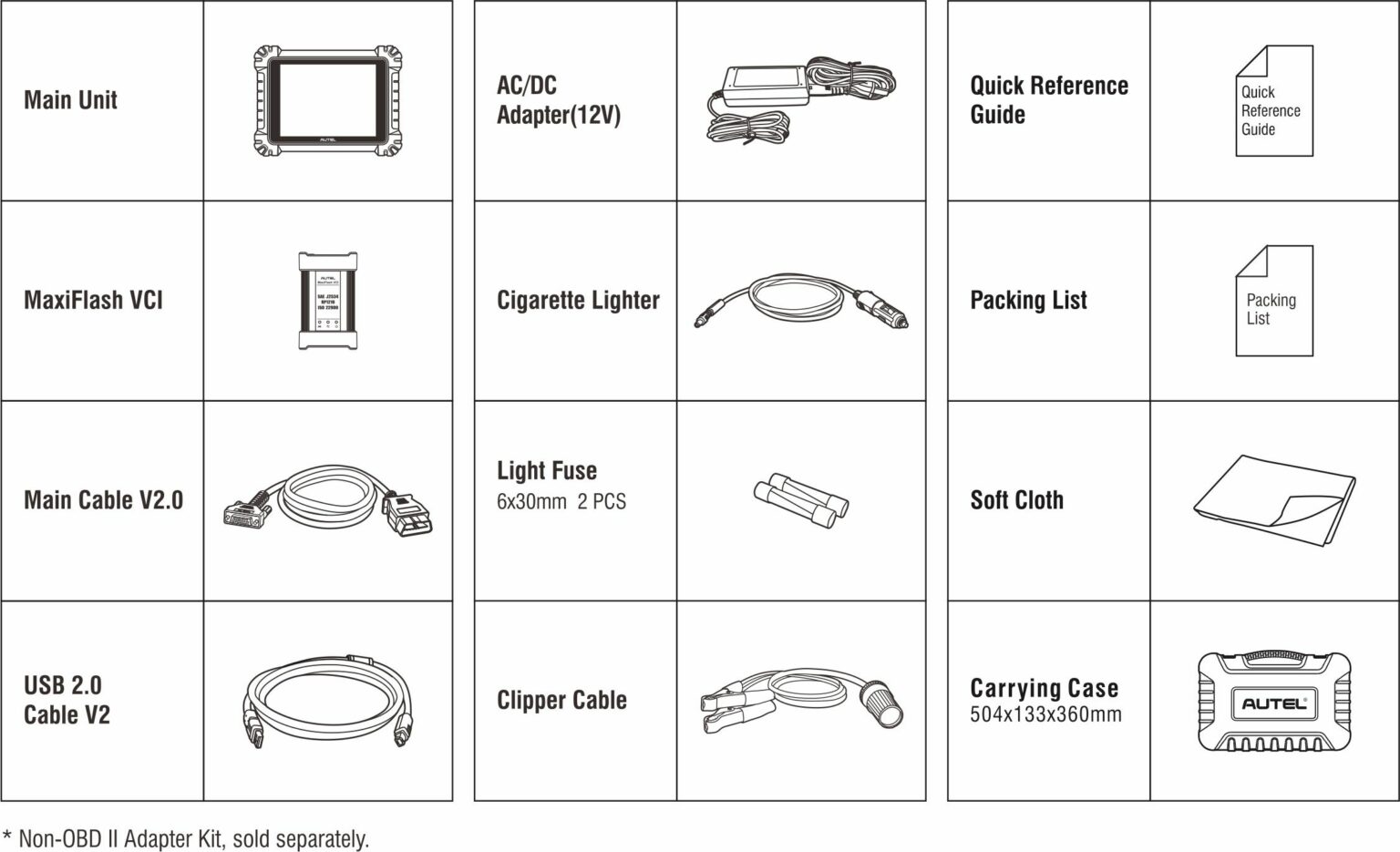

Accessories

Downloads

MS909_Quick start guide_EN

MaxiSys MS909 User Manual v1.0_EN
