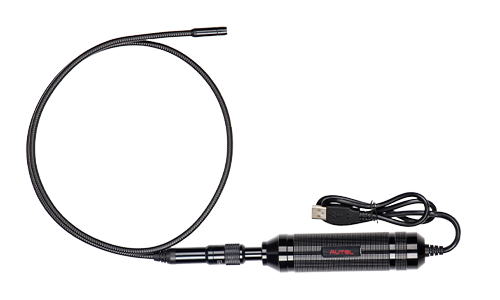

MaxiVideo MV105/MV108

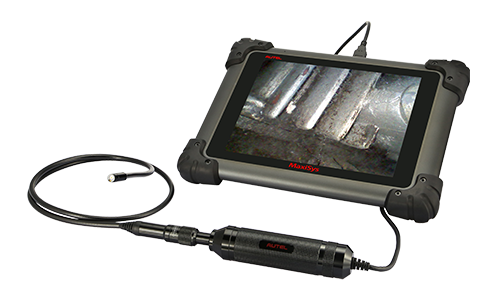

The MV105 and MV108 digital inspection cameras are designed to work with MaxiSys series products (except MaxiSys 906) or with your PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Category:

Description

  • White LED lights to illuminate the inspection areas.
  • Small diameter allows it to be used in the tight spaces.
  • Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
  • Powerful and perfect for inspecting most spark plug holes.
  • Super bright LED and high resolution provide crystal clear images.

Specifications

Operating Temperature Main Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature -20°C to 75°C (-4°F to 167°F)
Waterproof Imager head and cable to 1m(3’)
Weight MV108: 0.3kg with 8.5mm diameter imager head
MV105: 0.2kg with 5.5mm diameter imager head
Compliance FCC (EMC), CE (EMC and LVD)

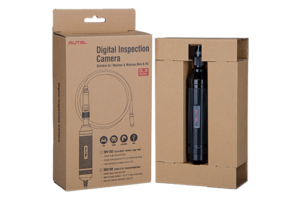

Accessories

MV105

  • Magnet
  • Mirror
  • Tablet MaxiSys NOT INCLUDED

MV108

  • Magnet
  • Mirror
  • Hook
  • Tablet MaxiSys NOT INCLUDED

Comparison

MV105 MV108
Optimal Viewing Distance 3/8’’ to 12’’ (0.95cm to 30cm) 1’’ to 14’’ (2.54cm to 35.56cm)
Image Capture 320x240px 640x480px
Image Head 5.5mm (0.22’’) 8.5mm (0.33’’)

Downloads

MaxiVideo MV105MV108 Quick Start Guide.pdf
