Maxivideo MV400

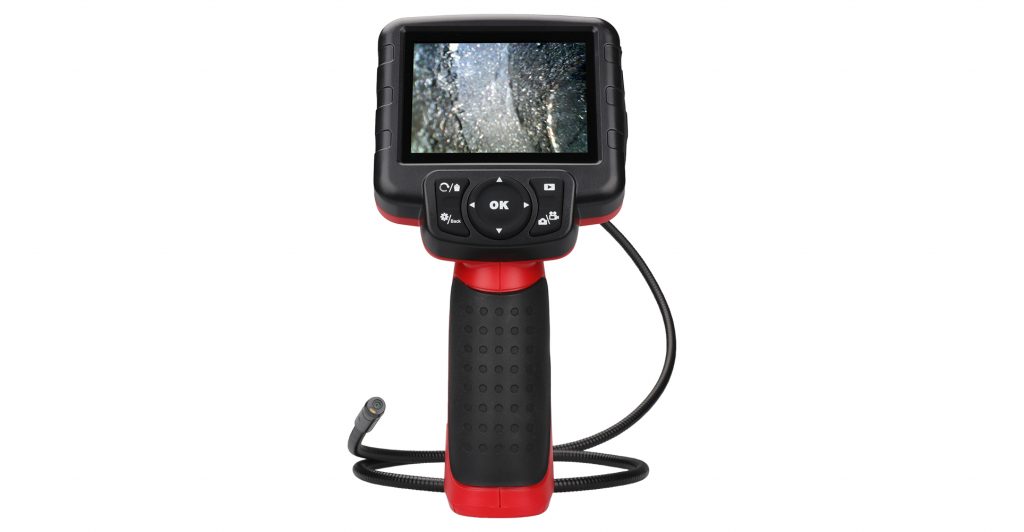

This premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory or on the removable Micro SD Card (Optional). The ergonomic tool not only features a 3.5″ full color LCD screen, auto focus and viewing capacity as close as 1″ with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.

Category:

Description

  • Records and plays back still images and video clips
  • 3.5 ” high resolution full color LCD display (320×240)
  • Easy-to-use, multi-language interface
  • Wide camera angle for images with 640×480 resolution
  • With optional removable Micro SD cards, saves images and videos to take with anywhere
  • On-screen horizontal/vertical reverse
  • 5x digital zoom for increased viewing
  • Mini USB connector for uploading images and videos to a computer
  • Narrow probe diameter available in either 8.5mm(0.33″) or 5.5mm(0.22″) and fits most spark plug holes
  • White LED to illuminate the inspection area, with illumination control
  • Views objects as close as 1″
  • Oil and scratch resistant tempered glass lens
  • 1M (39.4″) semi-rigid, but flexible watertight shaft
  • Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
  • Ergonomic and durable tool housing
  • One-year limited warranty

Specifications

Recommended use Indoor
Optimal viewing Distance 1″ to 14″ (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8″ to 12″ (0.95cm to 30cm) with 5.5mm diameter imager head
Image capture JPG images (640×480) AVI videos (320 x 240)
Screen type display 3.5″ TFT LCD
Display resolution 320 x 240
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
Tested battery life 3-4 hours of continuous use
Dimensions 199 x 100 x 178mm (7.83″ x 3.94″ x 7.0″)
Recording medium Micro SD card (Micro SD card is optional and not included)
Imager head 8.5mm (0.33″) is standard and 5.5mm (0.22″) is optional.
Waterproof Imager head and cable to 3m (10′)
Additonal ports USB, video out (TV-out) port
Operating temp. Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp. -4°F to 158°F (-20°C to 70°C)
Video output RCA
TV out NTSC, PAL

Accessories

  • Video-out cable (TV-out cable)
  • Protective carrying case
  • Charger
  • User’s Manual
  • Imager head and cable(8.5mm is standard)
  • Magnet, hook and mirror (Optional)
  • USB Cable

Comparison

MV105/108 MV208 MV400 MV460 MV480 MV500
High resolution and full color digital LCD display 2.4-Inch (320X240px) 2.4-Inch (320X240px) 3.5-Inch (640X480px) 3.5-Inch (640X480px) 4.1-Inch (1200X720px) 5-Inch (1280×720)
Record and Playback Images & Video Clips 320X240px 640×480px 1920 x 1080px 1920 x 1080px 1280×720px
Audio Annotation with MIC & Speaker
for detailed review		 √
Bright LED Flashlight √
Direction of View 0° (Front only) 0°+90° (Front & Side)
Freeze-Frame Camera Stills or Video Recording √ √
Wider 70° Field of View √ √
More than 10,000 LUX bright 10-Level adjustable LED √ √
Magnet & Hook Included √ + Mirror √
Compatible with 5.5MM (0.22”) Single Camera Head √ √
Single button for quick photo and video recording √ √
On-screen Horizontal / Vertical Reverse √ √ √ √
Dual cameras see straight ahead or at a 90° angle √ √
Add audio annotation for detail presentation √ √
Touchscreen for convenient operation √
On-screen photo editing and markup √
Wireless monitor enables remote viewing √
On-screen 90° clockwise rotation √ √ √
HDMI port for monitor view √ √ √
Built-in & adjustable LED illuminates viewing area √ √ √ √
BOn-screen horizontal/vertical reverse √ √ √ √
View objects as close as 1″ √ √ √ √ √
Mini USB connector for uploading images and videos √ √ √ √ √
1 m long semi-rigid flexible watertight shaft √ √ √ √ √
Digital zoom for detailed viewing 5× 5× 7× 7× 5×
Narrow probe diameter available in both 5.5 mm and 8.5 mm √ √ 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm
Micro SD card slot for greater memory capacity √ √ √ √ √
Oil and scratch resistant tempered glass lens √ √ √ √ √
Ergonomic and durable tool housing √ √ √ √ √
Built-in rechargeable Li-ion battery √ √ √ v
Multilingual support √ √ √ √
Water Resistant Camera head √ √ √ √
