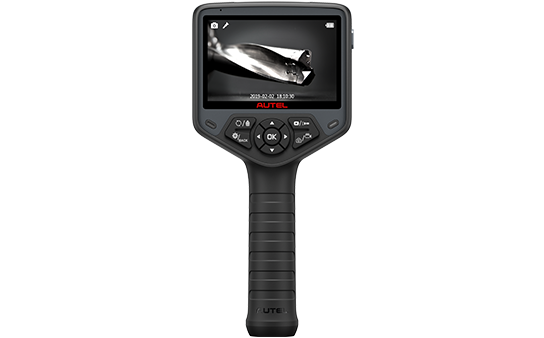

MaxiVideo MV480

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1″ 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Category:

Description

  • High resolution images and videos (1920 x 1080)
  • Dual front and side cameras for wider viewing angle
  • 4.1-inch full color LCD display (1200 x 720)
  • 1-button quick image capture and video recording
  • 70-degree field of view for expanded viewing angle
  • Adds audio annotation for detailed review
  • Micro HDMI-output enables streaming to larger monitors
  • Freeze-frame camera stills or video recording
  • On-screen horizontal/vertical reverse
  • Records and plays back images and video clips
  • 7X digital zoom for increased viewing
  • 8GB Micro SD card (included), supports up to 128GB
  • Mini-USB cable (included) for uploading images and videos
  • More than 10,000 lux, adjustable 10-level LED illumination
  • Flashlight for higher visibility in low-light environment
  • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
  • 1m (39.4″) semi-rigid, flexible watertight cable
  • Includes magnet and hook cable accessories
  • 8.5mm (0.33″) probe fits most spark plug holes
  • Compatible with 5.5mm (0.22″) camera head (not included)

Specifications

Recommended Use Indoor
Optimal viewing Distance 0.79″ to 2″ (2 cm to 5 cm)
Image Capture JPG images (1920 x 1080 pixels);
MP4 videos (1920 x 1080 pixels)
Display 4.1″ TFT LCD
Display Resolution 1200 x 720 pixels
Power Supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested Battery Life Approximately 4 hours of continuous use
Dimensions 243 x 116 x 122mm (9.6″ x 4.6″ x 4.8″)
Weight 0.422 kg (0.93lbs)
Recording Medium Micro SD card (8GB Standard/128GB Max)
Image Controls Zoom, low light vision
Lighting Fully adjustable LED
Cable Reach 1m (39.4″)
Imager Head 8.5mm (0.33″), 2 megapixel (1920 x 1080 pixels)
Waterproof To a depth of 1m (39.4″) (Imager heads and cable only)
Additional Ports TF, Mini USB, Micro HDMI
Operating Temp Main unit: 14°F to 122°F (-10°C to 50°C);
Cable: 14°F to 140°F (-10°C to 60°C)
Storage Temp -4°F to 158°F (-20°C to 70°C)
Operating Humidity 5% – 95% non-condensing

Includes

  • MV460 Hand-held Unit
  • Imager Head / Cable
  • Magnet
  • Hook
  • Charger
  • Mini USB Cable
  • 8G Micro SD Card
  • User Manual
  • Carry Case
  • Mirror

Comparison

MV105/108 MV208 MV400 MV460 MV480 MV500
High resolution and full color digital LCD display 2.4-Inch (320X240px) 2.4-Inch (320X240px) 3.5-Inch (640X480px) 3.5-Inch (640X480px) 4.1-Inch (1200X720px) 5-Inch (1280×720)
Record and Playback Images & Video Clips 320X240px 640×480px 1920 x 1080px 1920 x 1080px 1280×720px
Audio Annotation with MIC & Speaker
for detailed review		 √
Bright LED Flashlight √
Direction of View 0° (Front only) 0°+90° (Front & Side)
Freeze-Frame Camera Stills or Video Recording √ √
Wider 70° Field of View √ √
More than 10,000 LUX bright 10-Level adjustable LED √ √
Magnet & Hook Included √ + Mirror √
Compatible with 5.5MM (0.22”) Single Camera Head √ √
Single button for quick photo and video recording √ √
On-screen Horizontal / Vertical Reverse √ √ √ √
Dual cameras see straight ahead or at a 90° angle √ √
Add audio annotation for detail presentation √ √
Touchscreen for convenient operation √
On-screen photo editing and markup √
Wireless monitor enables remote viewing √
On-screen 90° clockwise rotation √ √ √
HDMI port for monitor view √ √ √
Built-in & adjustable LED illuminates viewing area √ √ √ √
BOn-screen horizontal/vertical reverse √ √ √ √
View objects as close as 1″ √ √ √ √ √
Mini USB connector for uploading images and videos √ √ √ √ √
1 m long semi-rigid flexible watertight shaft √ √ √ √ √
Digital zoom for detailed viewing 5× 5× 7× 7× 5×
Narrow probe diameter available in both 5.5 mm and 8.5 mm √ √ 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm
Micro SD card slot for greater memory capacity √ √ √ √ √
Oil and scratch resistant tempered glass lens √ √ √ √ √
Ergonomic and durable tool housing √ √ √ √ √
Built-in rechargeable Li-ion battery √ √ √ v
Multilingual support √ √ √ √
Water Resistant Camera head √ √ √ √

Video

Downloads

MaxiVideo 480 user manual
